柔性接触传感模组 - MG不朽情缘股份，创造健全智慧的生涯

柔性接触传感模组

所属分类：智能传感

产品卖点：

柔性接触传感模组是一种结合了电容传感技术和柔性资料设计的创新传感器。它重要由柔性基底和电容传感元件组成，当表界物体与传感模组接触时，会引起传感模组中电容值的变动，通过丈量这个变动量，能够正确地感知到表界接触的地位、压力等信息，从而实现对表界接触的精确感知和丈量。

? 产品特点

? 维持自动校对，无需表部过问

? 非接触式感应，合用各类分歧物体

? 耐高温3M背胶，矫捷装置，合用于各类分歧状态的容器

? 可凭据客户需要调整活络度

产品详情

? 规格参数

工作电压	DC 3.3V（2.5V-6V）
工作电流	0.47mA
输出方式	凹凸电平

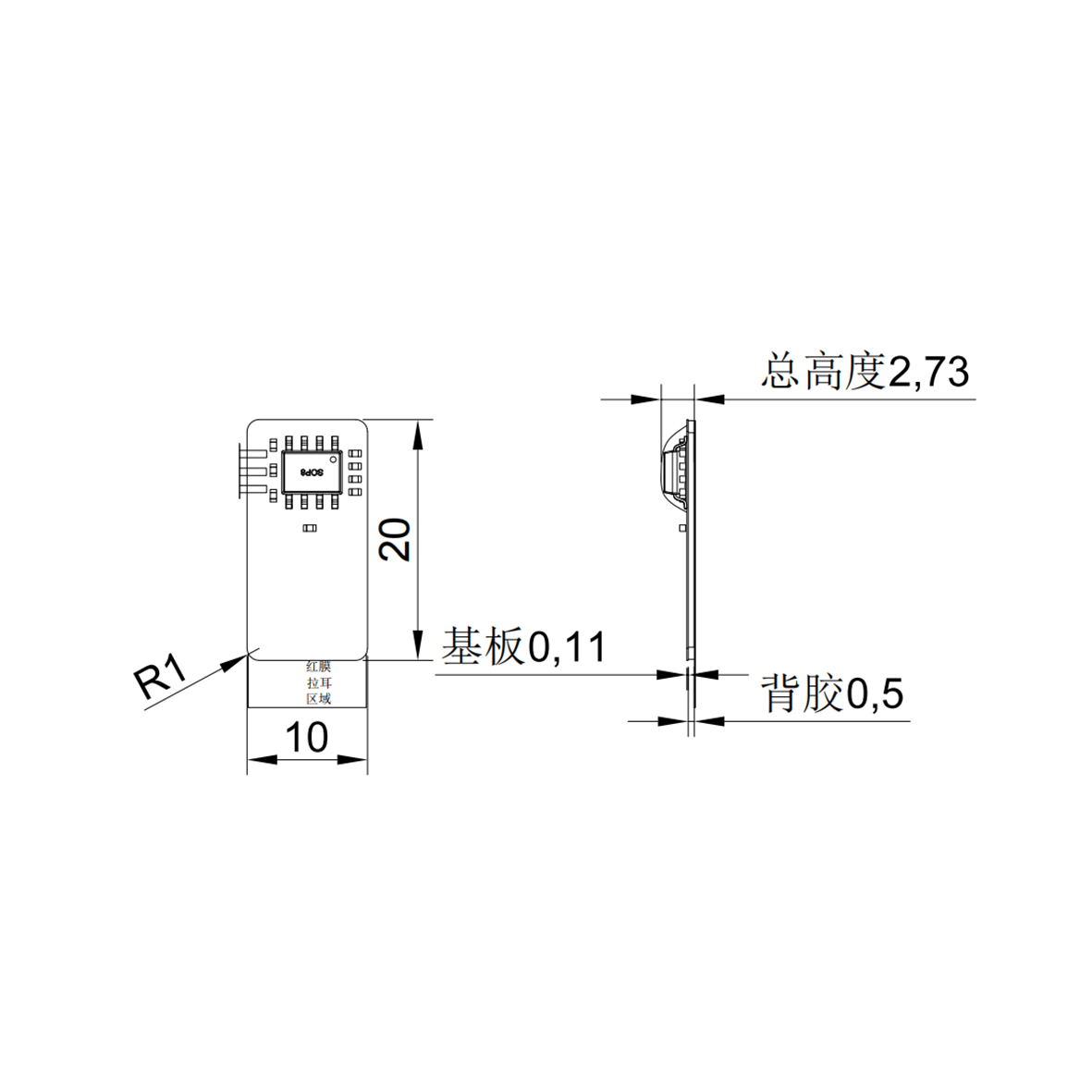

感应介质厚度	8.5mm（可定造）
感应方式	被动式
工作环境	-5℃~70℃ ,0%RH~85%RH

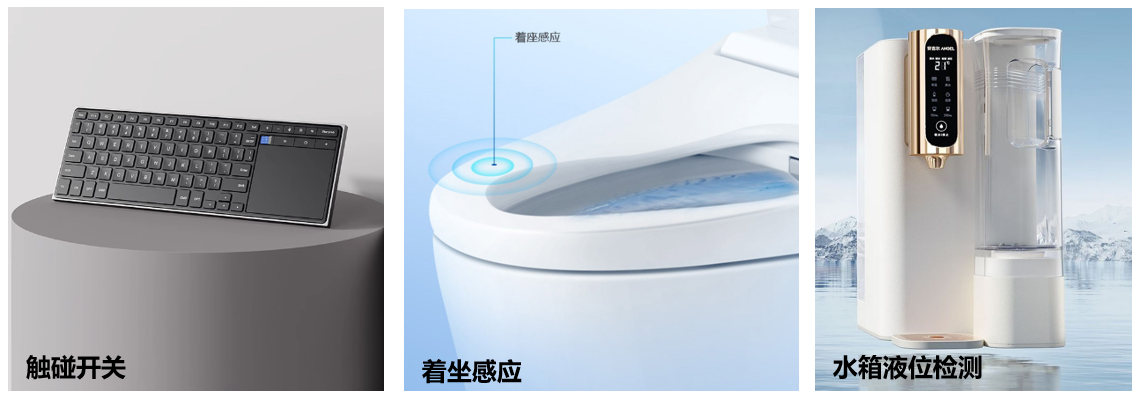

? 利用场景

? 代替机械开关，门禁按键，灯控开关

? 密封键盘面板

? 马桶着座感应器

? 洗地机净水箱液体检测

? 净水器设备水箱液位检测利用场景.png
